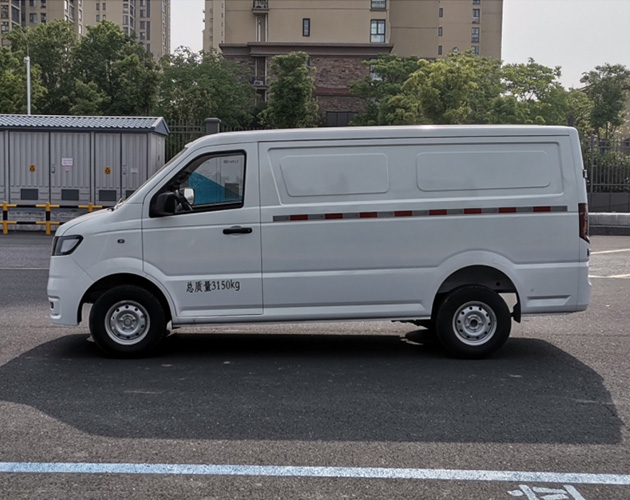

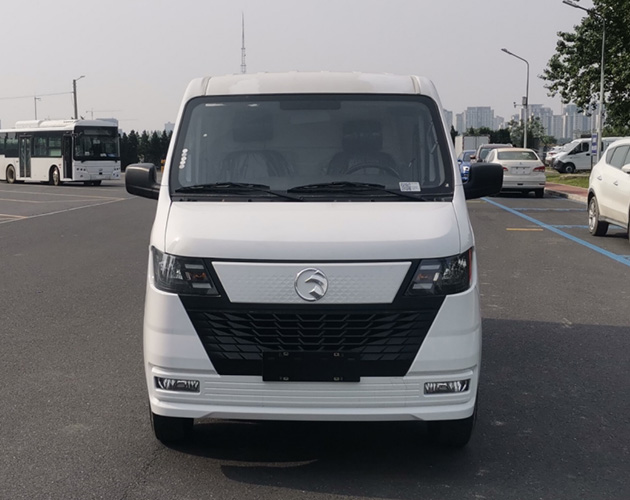

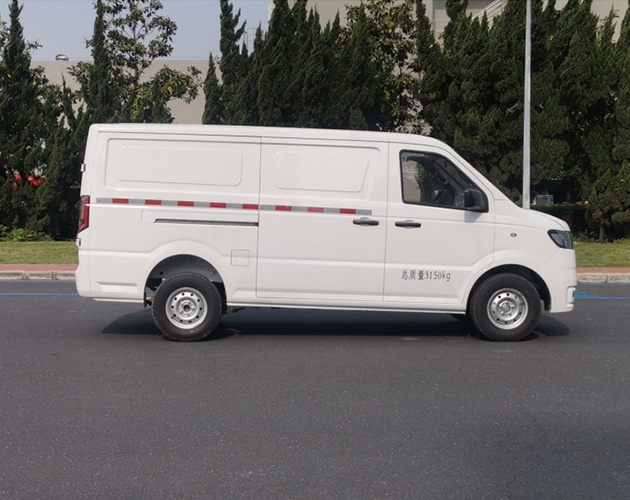

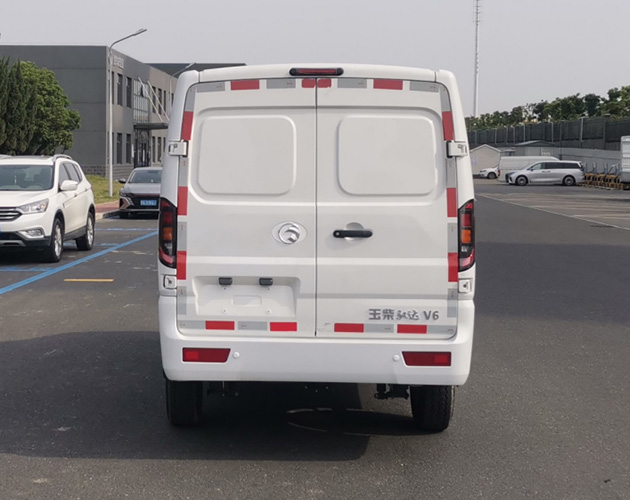

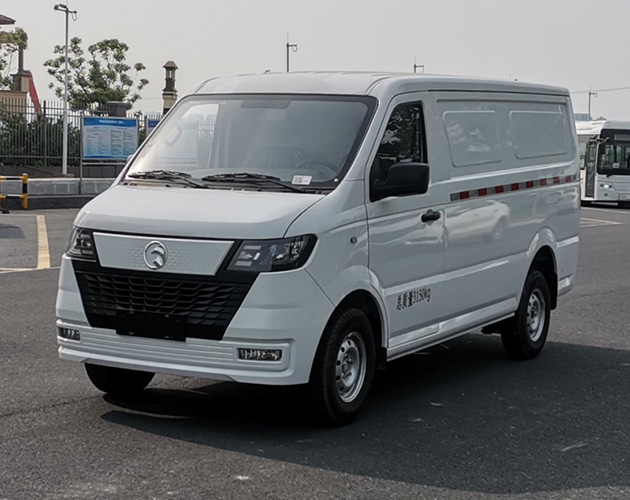

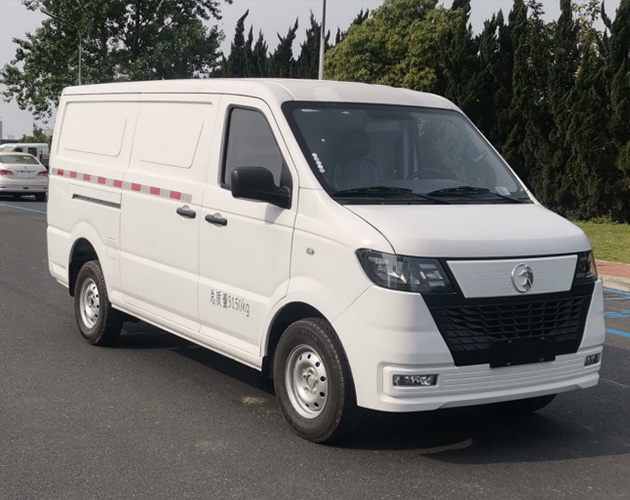

Pure electric van transporter Yuda V6
1.The front MacPherson suspension and the rear steel plate spring suspension improve the comfort and handling stability of the vehicle.
2.Front disc and rear drum hydraulic brake meets the needs of high requirements for brake heat dissipation.
3.Intensive full-stamping load-bearing structure design, both of the body and the bearing capacity are stronger.
4.The design of double doors and side sliding door are convenient for customer operation and improves loading and unloading efficiency.
5.Electric power steering system can lightly and flexibly control the steering, and the control is accurate and in place.
6.Long auto body, large wheelbase, large volume and high load capacity, enables it to carry larger volume and longer cargo.
| Project |
Allocation |
Parameter |
| Vehicle parameters |
Vehicle width (mm) |
1715 |
| External dimensions (mm) |
5265×1715×2065 |
|
| Box size (mm) |
3205×1550×1350 |
|
| Cargo space (m) |
7.2 |
|
| Wheelbase (mm) |
3450 |
|
| Driving Type |
Electric driven rear axle |
|
| Total mass (kg) |
3150 |
|
| Curb weight (kg) |
1690 |
|
| Car doors |
Driver's door, co driver's door, right sliding door, rear facing door |
|
| Parking method |
Handbrake |
|
| Brake assist |
Electric vacuum assist |
|
| Braking type | Front disc and rear drum, hydraulic braking |
|
| Steering Type |
Electronic Power Steering (EPS) |
|
| tyre |
195R14C 8PR | |
| Power battery |
Battery manufacturer |
EVE POWER |
| Battery type |
Lithium iron phosphate | |
| Battery level (kWh) |
46.36 |
|
| Battery energy density (wh/kg) |
>140 | |
| driving system |
Electric control motor manufacturer |
Yuchai Xinlan |
| Rated power/peak power (kW) |
35/70 |
|
| Peak torque (N-m) |
90/220 | |
| Energy feedback |
● | |
| Technical performance | Working condition endurance (km) |
280 |
| Maximum Climb (%) | >20 | |
| Maximum speed (km/h) |
90 | |
| Functional configuration |
ABS+EBD |
● |
| Central locking |
● | |
| Power windows |
● | |
| Interior rearview mirror |
● | |
| Sun visor for driver/passenger seat |
● | |
| Cabin cargo compartment closure panel |
● | |
| Warehouse floor |
●(Composite pattern flooring) |
|
| Interior of the warehouse ceiling |
● | |
| Warehouse ceiling light |
● | |
| Heating and cooling air conditioning | ● | |
| Fast charging |
● | |
| Slow charging |
○ | |
| Reverse radar |
● | |
| Reverse image |
○ | |
| Front fog lights |
● | |
| Radio |
● | |
| Multimedia |
○ | |
| 12V power interface |
● | |
| Spare tire | ○ |
Symbol Description: ● Standard, ○ Optional
