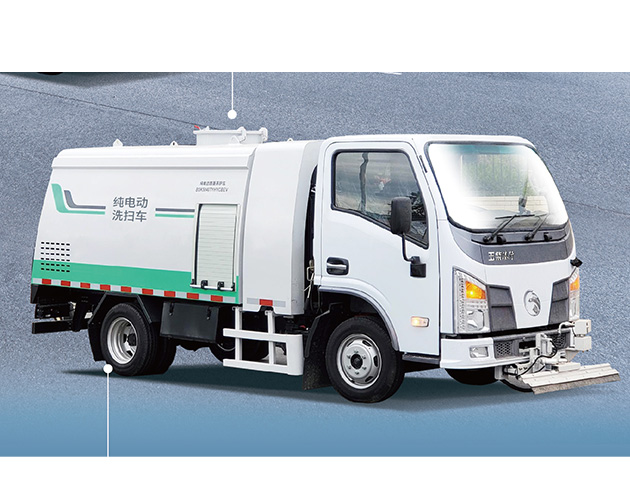

Zhenxing Environmental Sanitation Vehicle
Convenient directional design and modification
Based on a professional research and development team, combined with market demand, targeted development of operational products that are convenient for various environmental operations.
The body structure and functional component layout meet the diverse needs of upper body modification.
Scientific weight reduction and super strong load-bearing capacity
The entire vehicle is made of high-strength steel. Minimize the weight of the vehicle body to the greatest extent possible.
By innovatively designing and adjusting the body structure, it has super strong load-bearing capacity.
Worry free quality assurance service
The vehicle components adopt industry-leading brands, mature assembly processes, strict quality control, and a comprehensive vehicle evaluation system to provide customers with reliable products. Exclusive services to protect you.
| Project |
Allocation |
Parameter |
| Basic parameters of Class II chassis |
Length (mm) |
5215 |
| Width (mm) |
1660 |
|
| Height (mm) |
2090 |
|
| Wheelbase (mm) |
2800 |
|
| Track width (mm) |
1402、1416/1278 |
|
| Hanging length front/back (mm) |
1050/1365 |
|
| Curb weight of Class II chassis (kg) |
2010 |
|
| Full load design mass (kg) |
4495 |
|
| Number of passengers allowed in the cab (person) |
2 |
|
| Maximum speed (km/h) |
89 |
|
| -Acceleration time of 30km/h (s) |
≤10 |
|
| Acceleration time of 30-50km/h (s) | ≤10 |
|
| Maximum Climbing Slope (%) |
25 |
|
| Minimum turning diameter (m) |
≤12.4 |
|
| Full load endurance (km) |
250 |
|
| Minimum ground clearance (mm) |
160 |
|
| Approach angle/departure angle (°) |
21/15 | |
| Chassis handling |
Powertrain forming type |
Single reduction |
| Front suspension type |
Three fewer springs |
|
| Rear suspension type |
Multiple springs with 5 pieces |
|
| Axle speed ratio |
5.375 | |
| Braking type |
Hydraulic front disc and rear drum |
|
| Select and shift gears | Rotary electronic shifter | |
| Tire specifications |
185R15LT 8PR 6.00R15LT 10PR |
|
| Steel wheels |
● | |
| Vacuum assisted braking |
● | |
| Steering column lock |
● | |
| Electronic hydraulic power steering |
● | |
| Parking brake |
Central mechanical braking | |
| Spare tire |
● | |
| Drive motor |
Motor type |
PMSM |
| Motor drive form |
Single reduction | |
| Single reduction ratio |
3.04 | |
| Rated speed (r/min) | 3600 | |
| Rated/Peak Power (kW) |
45/100 | |
| Energy feedback |
● | |
| Power battery | Battery type |
Lithium iron phosphate |
| Battery level (kWh) |
66.84 | |
| Battery energy density (wh/kg) |
>150 | |
| Number of bicycle battery packs | 3 |
Symbol Description: ● Standard, ○ Optional
