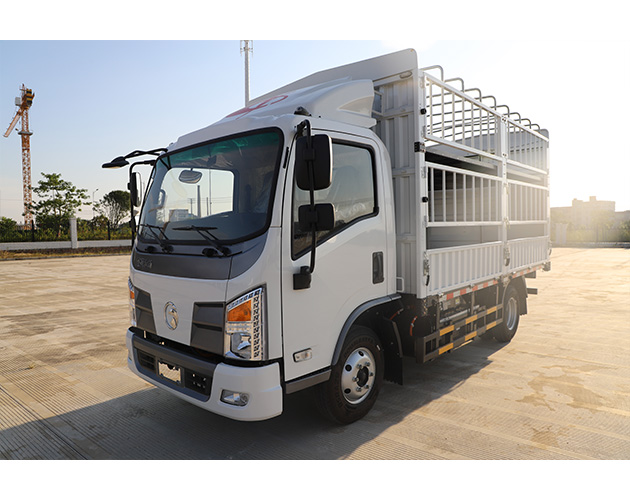

Pure electric stake truck

Live poultry/fruits and vegetables/agricultural and sideline products/large and light discarded goods
People-oriented Enjoy the ride
The ergonomic interior layout and humanized design make the ride comfortable and easy to operate
1. LCD combination instrument
The dashboard interface design is compact and consists of a seven-inch LCD display and a mechanical tachometer.
Real-time display of battery power, endurance power consumption, electric control temperature and other vehicle driving information to ensure driving safety.
2. Central control multimedia system
The center console adopts a 7-inch multimedia display, which is convenient for the driver's use and leisure.
A/C and warm air switch can achieve cold and warm air, providing a more comfortable driving environment.
3. Fashion energy-saving LED lights
LED combined headlights integrated near and far light headlights, turn signals, vertical modeling fashion atmosphere.
LED lights have long service life, high brightness, far lighting and low energy consumption.
4. Ample driving space
The heightened interior space is 35mm higher than similar models, easier to enter and exit, and more convenient to get on and off the car.
Central control door locks, electric doors and Windows, multi-functional steering wheel, knob type electronic shift, cruise control, provide a safer handling experience.



Parameter
Vehicle model
YCE5045CCYBEV YCE5043CCYBEV YCE5044CCYBEV
Pure electric stake truck
Vehicle parameters

Overall dimensions (mm): length, width, height
5995
2050,2100,2150,2200
2560,2960,3010,3060,3110,3160

Driver's cab width (mm)
1880
Wheelbase (mm)
3360
Curb weight (kg)
3150 3130,3200 3250
Total mass (kg)
4495
Number of passengers allowed in the cab (person)
3
Internal dimensions of the cargo box (mm): length, width, height
4125
1950,2000,2050,2100
1495,1900,1950,2000,2050,2100

Front and rear axles
2.5T/4T
Drive axle speed ratio
5.375,4.875
Chassis parameters
Maximum cross section of frame (mm)
190×65×5
Tyre
7.00R16LT  10PR
Turn
Electronic hydraulic assistance
Braking type Front and rear hydraulic drum type
Parking brake
Central mechanical braking
Brake assist
Electric vacuum assist
Power battery
Battery manufacturer
CATL
Battery type
Lithium iron phosphate
Battery level (kWh)
81.14 98.04 106.95
Battery energy density (lwh/kg)
>145 >150 >150
Drive motor
Electric control motor manufacturer
Yuchai
Motor type
PMSM
Motor drive form
Single stage reducer
Rated power/peak power (kW)
60/120
Peak torque (N-m)
340
Energy feedback
Security
ABS
Reverse voice

Reverse radar/imaging

Comfort
instrument
7-inch LCD screen
Multimedia central control

Multifunctional steering wheel

Heating and cooling air conditioning
Power windows
remote key
Air deflector
Charging port Fast charging
Application scenarios
Transportation of live poultry/fruits and vegetables/agricultural products/transportation of large and light discarded goods

Symbol Description: ● Standard, ○ Optional
