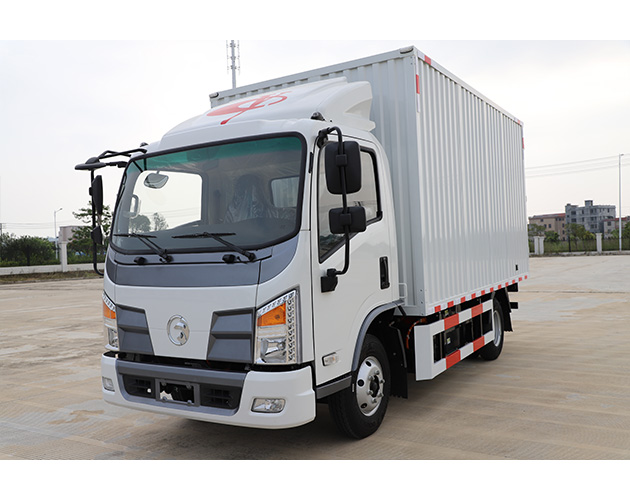

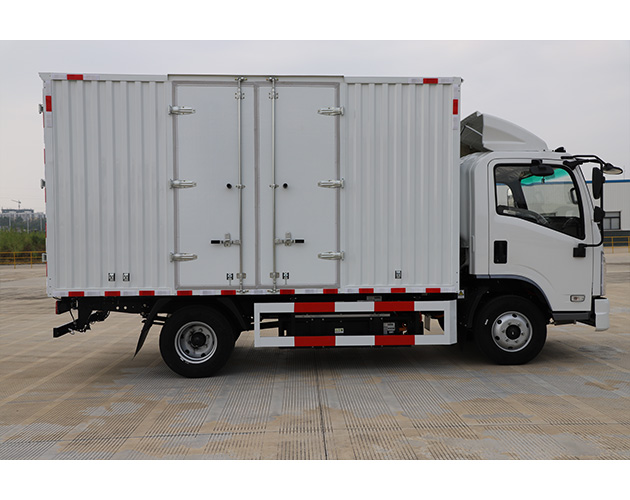

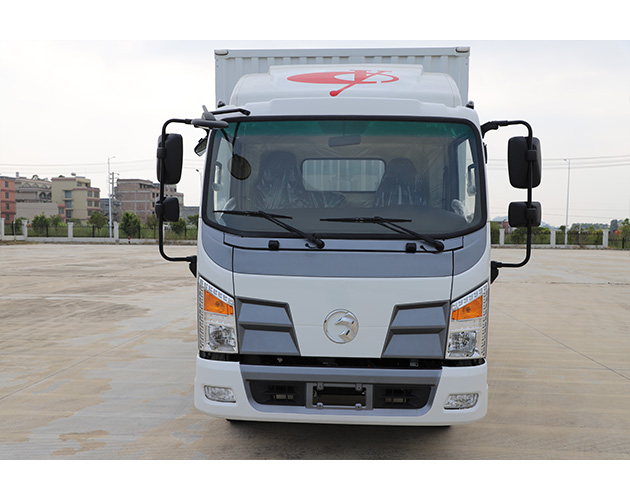

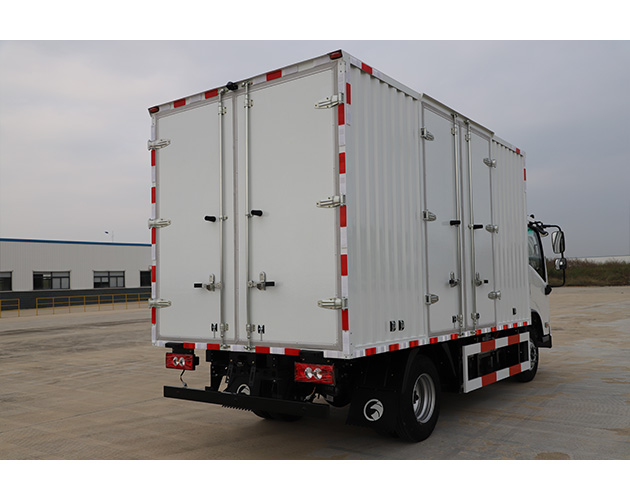

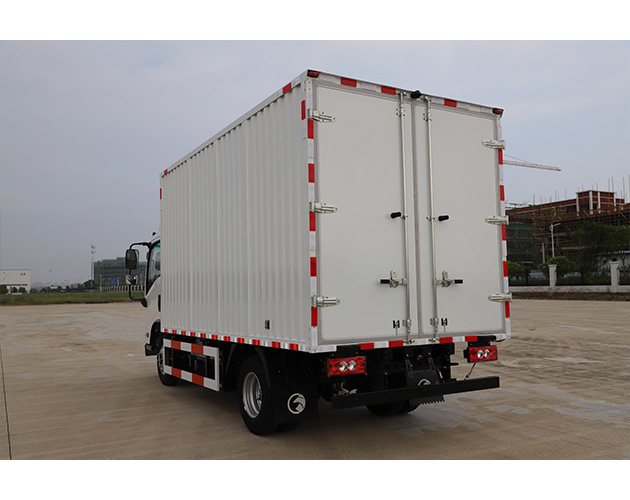

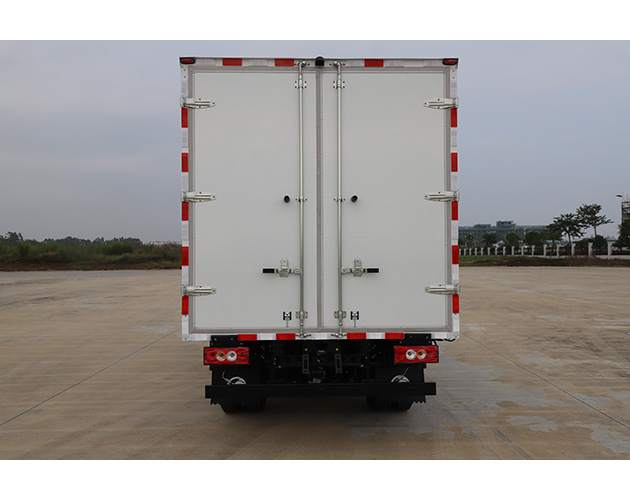

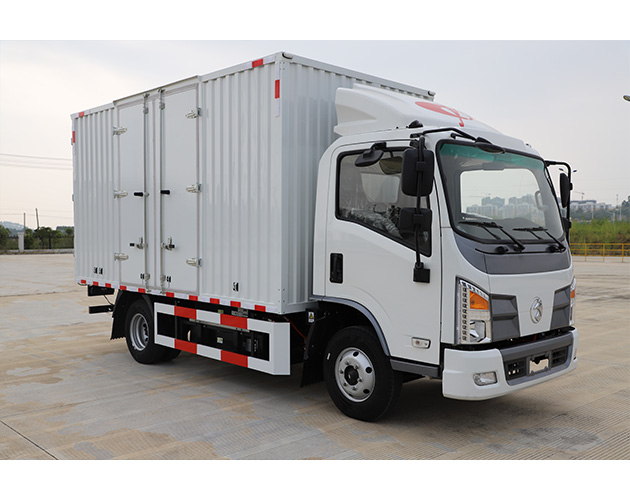

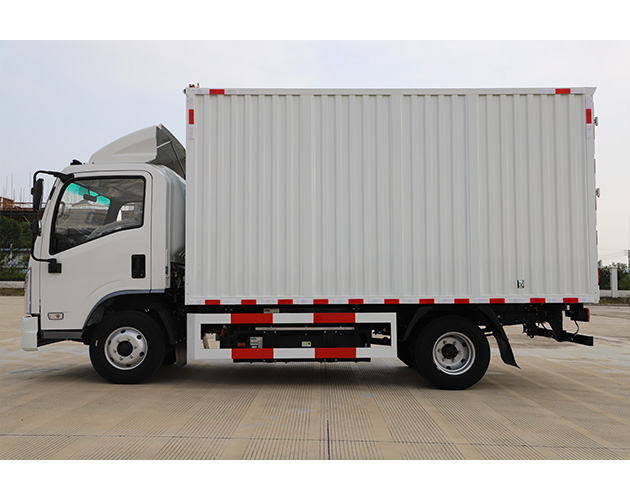

Pure electric van transporter
Express logistics/supermarket delivery/pharmaceutical transportation/trade wholesale/home decoration transportation/agricultural product transportation
People-oriented Enjoy the ride
The ergonomic interior layout and humanized design make the ride comfortable and easy to operate
1. LCD combination instrument
The dashboard interface design is compact and consists of a seven-inch LCD display and a mechanical tachometer.
Real-time display of battery power, endurance power consumption, electric control temperature and other vehicle driving information to ensure driving safety.
2. Central control multimedia system
The center console adopts a 7-inch multimedia display, which is convenient for the driver's use and leisure.
A/C and warm air switch can achieve cold and warm air, providing a more comfortable driving environment.
3. Fashion energy-saving LED lights
LED combined headlights integrated near and far light headlights, turn signals, vertical modeling fashion atmosphere.
LED lights have long service life, high brightness, far lighting and low energy consumption.
4. Ample driving space
The heightened interior space is 35mm higher than similar models, easier to enter and exit, and more convenient to get on and off the car.
Central control door locks, electric doors and Windows, multi-functional steering wheel, knob type electronic shift, cruise control, provide a safer handling experience.
Parameter |
Vehicle model | YCE5047XXYBEV | YCE5045XXYBEV | YCE5046XXYBEV |
Pure electric van transporter |
||||
Vehicle parameters |
Overall dimensions (mm): length, width, height |
5995 2030,2070,2110,2130,2150,2170 2850,2940,2980,3040,3080,3120 |
||
Driver's cab width (mm) |
1880 |
|||
Wheelbase (mm) |
3360 |
|||
Curb weight (kg) |
3150 | 3130,3200 | 3250 | |
Total mass (kg) |
4495 |
|||
Number of passengers allowed in the cab (person) |
3 |
|||
Internal dimensions of the cargo box (mm): length, width, height |
4125 1960,2000,2040,2060,2080,2100 1830,1920,1960,2020,2060,2100 |
|||
Front and rear axles |
2.5T/4T |
|||
Drive axle speed ratio |
5.375,4.875 |
|||
Chassis parameters |
Maximum cross section of frame (mm) | 190×65×5 |
||
Tyre |
7.00R16LT 10PR |
|||
Turn |
Electronic hydraulic assistance |
|||
Braking type |
Front and rear hydraulic drum type |
|||
Parking brake |
Central mechanical braking |
|||
Brake assist |
Electric vacuum assist |
|||
Power battery |
Battery manufacturer |
CATL |
||
Battery type |
Lithium iron phosphate | |||
Battery level (klwh) |
81.14 | 98.04 | 106.95 | |
Battery energy density (wh/kg) |
>145 | >150 | >150 | |
Drive motor |
Electric control motor manufacturer |
Yuchai |
||
Motor type | PMSM |
|||
Motor drive form |
Single stage reducer |
|||
Rated power/peak power (kW) |
60/120 |
|||
Peak torque (N-m) |
340 |
|||
Energy feedback |
● |
|||
Security |
ABS | ● |
||
Reverse voice |
● |
|||
Reverse radar/imaging |
○ |
|||
Comfort | instrument |
7-inch LCD screen | ||
Multimedia central control |
○ |
|||
Multifunctional steering wheel |
○ |
|||
Heating and cooling air conditioning | ● |
|||
Power windows |
● |
|||
remote key |
● |
|||
Air deflector |
● |
|||
Charging port |
Fast charging |
|||
Application scenarios | Express logistics/supermarket delivery/home decoration transportation/pharmaceuticals/disinfected tableware/hotel bedding transportation |
Symbol Description: ● Standard, ○ Optional
